Backend for Frontend (BFF) on AWS — AppSync/GraphQL + Lambda Resolvers

What you’ll learn

• What the BFF pattern is and why teams use it
• How to build BFFs per client type (web vs mobile)
• How AppSync (GraphQL) + Lambda resolvers can act as a BFF
• Trade-offs: one GraphQL API vs multiple BFFs, caching, rate limits, and security

The problem BFF solves

If multiple clients (web, mobile, partner apps) call the same “generic” backend, you often end up with:

• Over-fetching: clients download fields they don’t need
• Under-fetching: clients must call 5–10 APIs to render one screen
• Client complexity: business composition leaks into frontends
• Coupling: backend changes break a specific UI flow

Backend for Frontend (BFF) fixes this by creating a backend tailored to a specific frontend:

• Web BFF optimized for web pages and components
• Mobile BFF optimized for mobile screens and bandwidth

BFF in one sentence

A BFF is a client-specific backend that aggregates and shapes data exactly the way that client needs, without exposing internal service complexity.

AWS ways to implement BFF (multiple options)

Option A (common): AppSync (GraphQL) as the BFF

Use AWS AppSync as the API layer; use Lambda resolvers to orchestrate/aggregate across services.

Good for:

• Many “screen-shaped” read models
• Product surfaces that change frequently
• Mobile apps that benefit from GraphQL’s selective fetching

Option B: Separate BFFs per client (AppSync per client or API Gateway per client)

You can run:

• One AppSync API per client type (web vs mobile), or
• API Gateway + Lambda per client type (REST-style BFF), or
• A hybrid: AppSync for reads, API Gateway for commands (writes)

Good for:

• Different auth models or SLAs per client
• Strong separation between web/mobile release cycles

Option C: Single AppSync API (one graph), “multiple views”

One schema, but resolvers and authorization rules enforce what each client can access.

Good for:

• Shared product surfaces
• Lower operational overhead than multiple BFF deployments

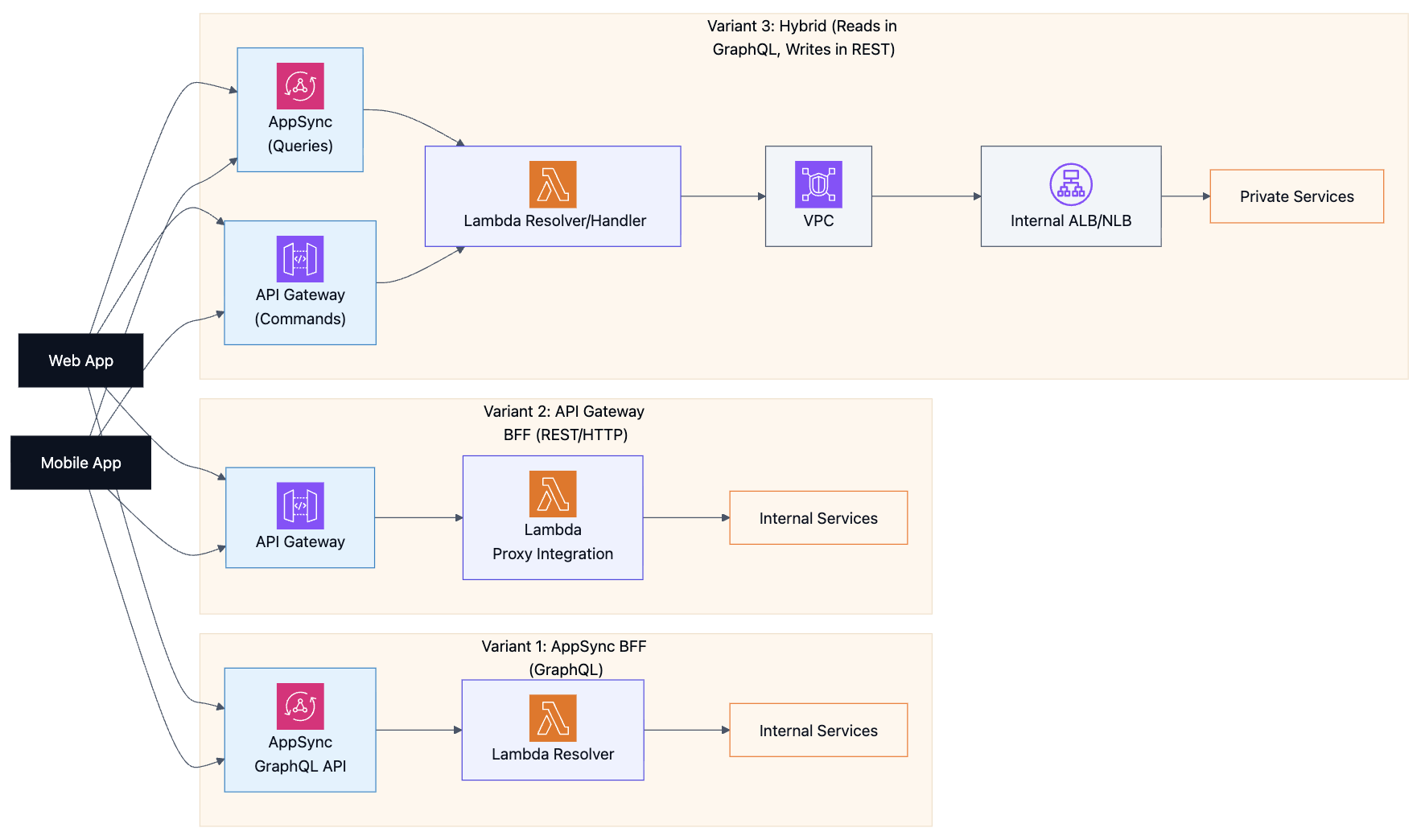

Variant patterns: how your BFF talks to backends

Variant 1: AppSync BFF → Lambda resolvers (no API Gateway)

AppSync can invoke Lambda resolvers directly. This is the cleanest GraphQL-first BFF setup.

Variant 2: API Gateway BFF → Lambda proxy integration

Here API Gateway is your BFF (REST/HTTP). It invokes Lambda via proxy integration and shapes responses per client.

Variant 3: Hybrid (common in production)

• AppSync for reads/aggregation (screen-shaped queries)
• API Gateway for commands/writes (mutations that cause side effects)
• AppSync resolvers (via Lambda) can also call private services behind internal ALB/NLB

Quick guidance (which variant to pick)

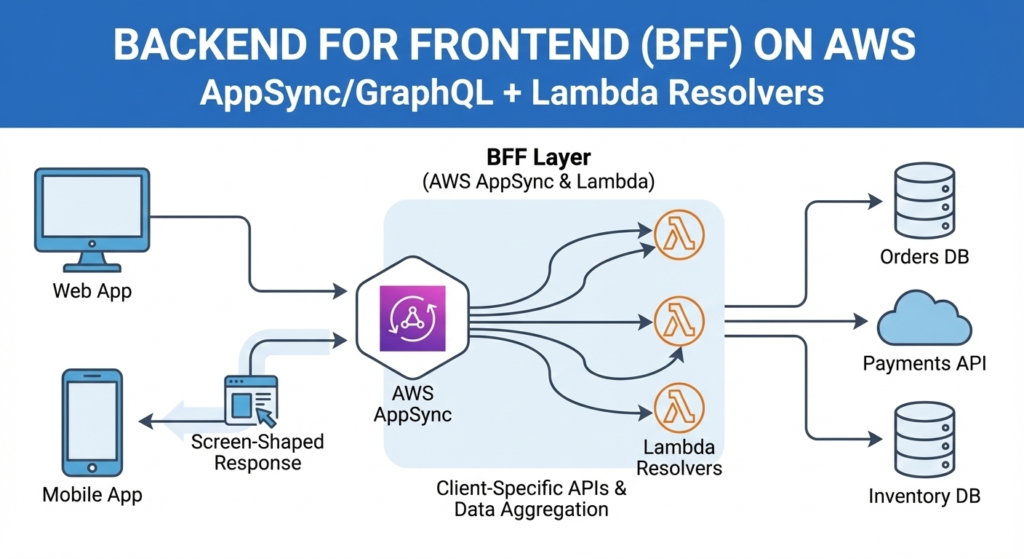

High-level architecture: BFF per client type with AppSync

How Lambda resolvers behave

A resolver is the “glue” that:

• Validates identity/claims (or relies on AppSync auth)
• Calls one or more internal services
• Aggregates results into a shape that matches the UI
• Applies fallbacks when a dependency is slow/unavailable (optional)

The frontends now issue a single GraphQL query instead of multiple REST calls.

Sequence diagram: one UI screen → one GraphQL call (emoji style)

%%{init: {"theme":"base","htmlLabels":true,"themeVariables":{
  "background":"#FFFFFF",
  "lineColor":"#475569",
  "textColor":"#0F172A",
  "actorBkg":"#EEF2FF",
  "actorBorder":"#4F46E5",
  "actorTextColor":"#0F172A",
  "actorLineColor":"#94A3B8",
  "signalColor":"#334155",
  "signalTextColor":"#0F172A",
  "labelBoxBkgColor":"#F8FAFC",
  "labelBoxBorderColor":"#CBD5E1",
  "labelTextColor":"#0F172A",
  "noteBkgColor":"#FFF7ED",
  "noteTextColor":"#0F172A",
  "activationBkgColor":"#ECFDF5",
  "activationBorderColor":"#10B981",
  "sequenceNumberColor":"#64748B"
}}}%%
sequenceDiagram
  autonumber
  participant U as 🧑 User
  participant C as 📱 Mobile App
  participant A as 🌐 AppSync (GraphQL)
  participant R as ⚙️ Lambda Resolver
  participant O as ⚙️ Orders Service
  participant P as ⚙️ Payments Service
  participant D as 🗄️ DynamoDB

  U->>C: Open "My Orders" screen
  C->>A: GraphQL query: myOrders { items { ... } totals { ... } }
  A->>R: Invoke resolver(s)
  par Fan-out aggregation
    R->>O: GetOrders(userId)
    O->>D: Query orders by userId
    D-->>O: orders
    O-->>R: orders
  and
    R->>P: GetPaymentStatus(orderIds)
    P-->>R: status map
  end
  R-->>A: Aggregated response (screen-shaped)
  A-->>C: GraphQL response
  C-->>U: Render UI

BFF design choices (the “real world” part)

One BFF per client vs one shared BFF

Where to put writes (commands)

Common approaches:

• Keep writes in REST endpoints (API Gateway + Lambda) and reads in AppSync
• Or do both reads/writes in GraphQL (mutations) if your team is comfortable with it

Performance: caching, batching, and avoiding the N+1 problem

Key idea: A BFF can accidentally create too many backend calls.

Good practices:

• Batch requests in resolvers (fetch many IDs at once)
• Use per-request caching within the resolver
• Consider a read-optimized store (like OpenSearch) for complex “feed” queries

Security and governance

• Use Cognito/JWT auth; enforce authorization at the field/resolver level
• Apply least-privilege IAM for resolver functions
• Add request limits and alarms (watch for abuse and expensive queries)

When BFF is a great fit (and when it’s overkill)

Great fit:

• Multiple clients with different UI needs
• Complex screens that require aggregation from many services
• Teams want to protect internal APIs from direct client access

Overkill:

• One client with simple CRUD
• Your backend already matches your UI needs well
